Zinc Air Button Cell - ZA Series


INTRODUCTION

With over 10 years of intensive R&D, Rondason Zinc-Air batteries are ranked as one of the sophisticated products enjoying favorable reputable in the market. With hearing-aid using zinc-air button batteries sized from A675 to A10, you can expect fewer battery replacements, clearer tones, less distortion, fewer volume adjustments, and longer service life. Zinc-air batteries are the most suitable cells for pagers.

Our A675, A13, A312 and A10/230 are low cost, high performance and high reliability. They are suitable for the latest digital heavy-duty models hearing aids and cochlear speech processors.

PRODUCT CHARACTERISTICS

With metallic zinc as its negative electrode, oxygen in the air as its positive depolarizer and aqueous potassium hydroxide as its electrolyte, the zinc-air cell has the highest energy density of any battery system. It also meets the worldwide environmental regulations. More features as follows:

1. Super Long Service life 2-10 times longer than any other battery system.

2. Flat Discharge> Constant output voltage makes less adjustment of your hearing aid.

3. High drain output will power the most heary duty hearing aid easily.

4. Excellent Sealed Shelf Life Up to five years shelf life sealed with tab.

PRODUCT CHART

Model No.

IEC

Dimensions (ØxH mm)

Voltage
(V)

Drain

Standard Load (£[)

Nominal Capacity (mAh)

Average Weight (gm)

ZA10

PR70

5.8x3.6

1.4

high

3000

65

0.31

ZA312

PR41

7.9x3.6

1.4

high

1500

140

0.52

ZA13

PR48

7.9x5.4

1.4

high

1500

240

0.83

ZA675

PR44

11.6x5.4

1.4

high

620

580

1.82

PRODUCT DESCRIPTIONS

ZA10 Characteristics (yellow label)

Super Heavy Duty. Max. output drain > 2 mA. 65mAh long life. Suitable for digital hearing aids. Low internal resistance. Less sound distortion. Standard dial pack of 6 cells. OEM private name packing available.

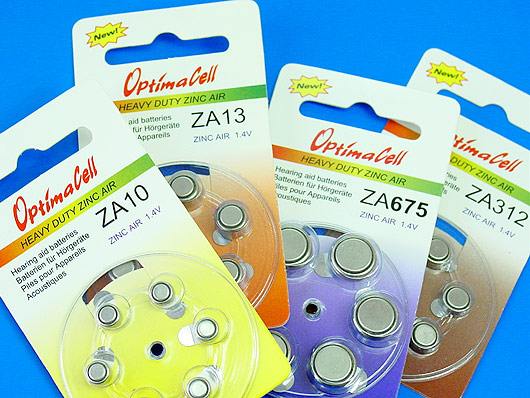

ZA10 Dial Pack

Dial Pack Card: 6 cells (48x90mm),

Inner Box: 150 cells (25 cards) (92x92x51mm),

Carton: 4,500 cells (30 boxes).

Carton Size: 48x20x17CM.  Gross Weight: 5.3kgs

ZA10 Tray Pack

Tray Size: 50 cells (110x120mm),

Sub-pack: 1,000 cells (20 trays),

Carton: 12,000 cells (12 sub-packs).

Carton Size: 36x24x20CM.  Gross Weight: 6.5kgs

ZA13 Characteristics (orange label)

Super Heavy Duty. Max. output drain > 8 mA. 240mAh long life. Suitable for digital hearing aids, Low internal resistance. Less sound distortion. Standard dial pack of 6 cells. OEM private name packing available.

ZA13 Dial Pack

Dial Pack Card: 6 cells (48x90mm),

Inner Box: 120 cells (20 cards) (92x92x51mm),

Carton: 3,600 cells (30 boxes).

Carton Size: 48x20x17CM.  Gross Weight: 6.3kgs

ZA13 Tray Pack

Tray Size: 50 cells (110x120mm),

Sub-pack: 1,000 cells (20 trays),

Carton: 6,000 cells (6 sub-packs).

Carton Size: 39x27x15CM.  Gross Weight: 6.6kgs

ZA312 Characteristics (brown label)

Super Heavy Duty. Max. output drain > 5 mA. 130mAh long life. Suitable for digital hearing aids. Low internal resistance. Less sound distortion. Standard dial pack of 6 cells. OEM private name packing available.

ZA312 Dial Pack

Dial Pack Card: 6 cells (48x90mm),

Inner Box: 150 cells (25 cards) (92x92x51mm),

Carton: 4,500 cells (30 boxes).

Carton Size: 48x20x17CM.   Gross Weight: 6.2kgs

ZA312 Tray Pack

Tray Size: 50 cells (110x120mm),

Sub-pack: 1,000 cells (20 trays),

Carton: 12,000 cells (12 sub-packs).

Carton Size: 36x24x20CM.  Gross Weight: 9kgs

ZA675 Characteristics (blue label)

Super Heavy Duty. Max. output drain > 15 mA. 560mAh long life(A675P 430mAh at 100 Ohms). Suitable for digital hearing aids(A675P for cochlear). Low internal resistance. Less sound distortion. Standard dial pack of 6 cells. OEM private name packing available.

ZA675 Dial Pack

Dial Pack Card: 6 cells (48x90mm),

Inner Box: 120 cells (20cards) (92x92x51mm),

Carton: 3,600 cells (30 boxes).

Carton Size: 48x20x17CM.  Gross Weight: 9.8kgs

ZA675 Tray Pack

Tray Size: 50cells (110x120mm),

Sub-pack: 1,000 cells (20 trays),

Carton: 6,000 cells (6 sub-packs).

Carton Size: 39x27x15CM.  Gross Weight: 11.7kgs
