LITHIUEM BATTERY - WR Series

Rondason Lithium Sulphur Dioxide (Li-SO2) batteries are widely used for high technical products taking the advantage of their prestige performance. These batteries have high-energy density; high and steady operating voltage, withstanding wide operating temperature, perfect storage performance and excellent environment adaptability.

Major Features:

  • High energy density up to 280WH/kg (365WH/dm3).
  • Open circuit voltage 2.9V, operating voltage 2.7-2.9V with loaded resistance.
  • Long storage life, less than 2% of self-discharge rate per year, possible stored for 10¡ã15 years at room temperature.
  • Spiral electrode structure enabling discharge at large current rate.
  • Wide operating temperature, ranging from -55¢J to +70¢J.
  • Non-magnetic stainless steel case, hermetically sealed and leak-proved, ensuring safe for transportation and general shock.

Major Applications:

  • Military electronics
  • Night vision equipment
  • Cryptographs
  • Radio frequency channel selectors
  • Target acquisition equipment

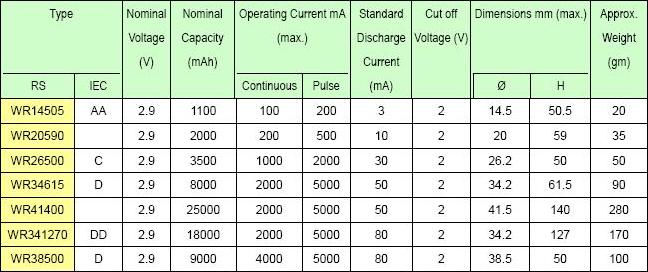

Specifications - WR series




Battery Terminal Connections

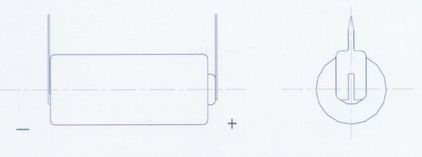

Tag

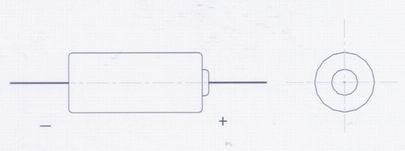

Axial Lead

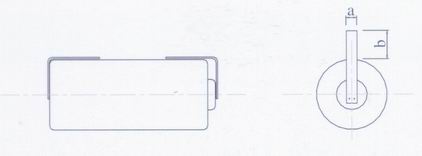

Nickel plate lead

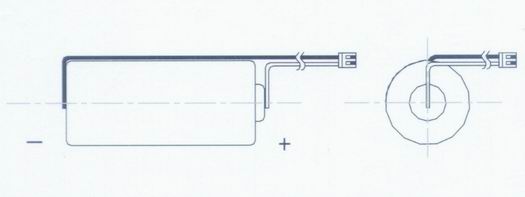

Plug
