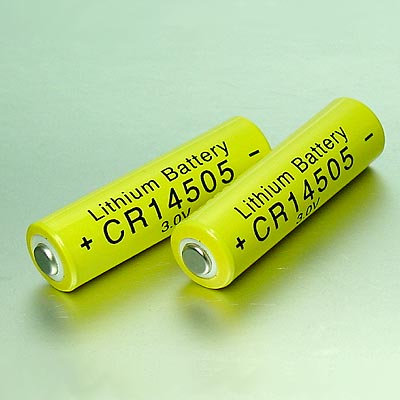

LITHIUEM BATTERY - CRC Series


Major Features:

  • High energy density up to 270WH/kg (510WH/dm3).
  • Open circuit voltage 3.0V, high operating voltage 2.7-3.0V with loaded resistance.
  • Long storage life, less than 2% of self-discharge rate per year, possible stored for 10 years at room temperature.
  • Spiral electrode structure enabling discharge at large current rate.
  • Wide operating temperature, ranging from -40℃ to +70℃.
  • Non-magnetic stainless steel case, hermetically sealed and leak-proved, ensuring safe for transportation and general shock.

Major Applications:

  • Digital Cameras, AF cameras
  • Photo flash
  • Water meters, gas meters & flow meters
  • Walkie Talkie
  • Fire alarm
  • Emergency lights
  • Medical equipment
  • Electronic & electrical toys

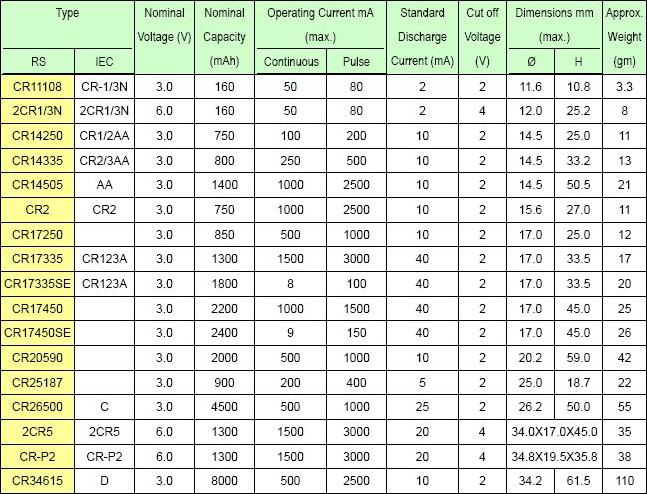

Product Chart




Battery Terminal Connections

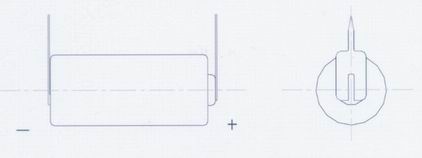

Tag

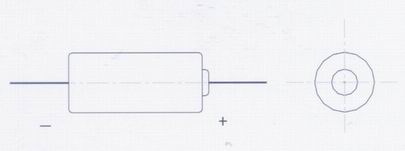

Axial Lead

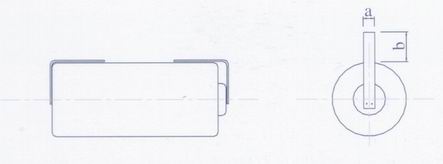

Nickel plate lead

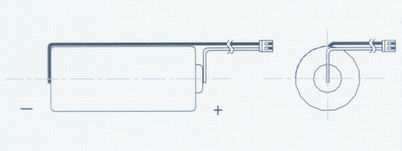

Plug
